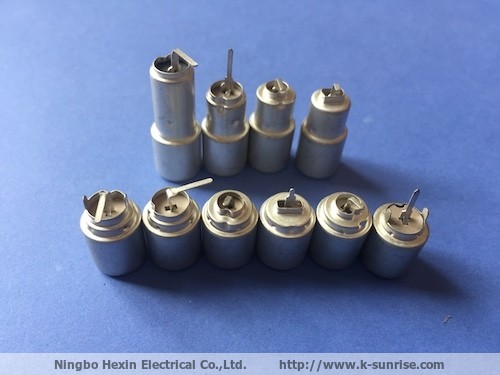

TV antena IEC pal connector 75ohm

TV antena IEC pal connector 75ohm
产品名称:TV antena IEC pal connector 75ohm
产品编号:IEC Connector-43
详细说明:


Representation specification

○Electrical characteristics Rated: voltage. current. 30V, 1A
Impedance: 75Ω
VSWR: ~860MHz 1.8max
Insulation resistance: DC500V 1000MΩ min.
Dielectric Strength: AC1000V 1minute
Contact resistance: 10mΩ max
○Mechanical characteristics Synthetic insertion & withdrawal force: 9.8N~58.8N
Life: 50 times
○Others RoHS correspondence
Reflow 260℃max. (for chassis)
